Laser Measurement Solutions 100m Diastimeter Digital Laser Distance
sensor B605B
Description:

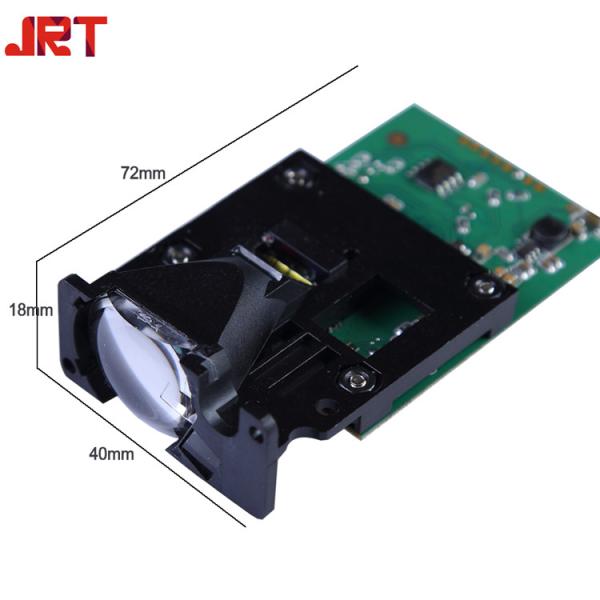

The Laser Measurement Solutions 100m sensor with size of 72*40*18mm
is the most suitable for outdoor measuring for it`s strongest
ranging finding ability. The Laser Measurement Solutions 100m
sensor measuring range( with reflection) is 0.03~150m.Obviously,
the Laser Measurement Solutions 100m sensor measurement accuracy is
also very high that is 0.03m. The measurement time of JRT this
Laser Measurement Solutions sensor can be achieved 0.125 seconds.
It is can be widely used in professional surveying, mapping,
construction, robots, hunting arrows, industrial monitoring and
automated measurement applications in electricity, transportation,
etc. Our laser distance module supports data communication via blue
tooth,RS232,RS485, USB etc.
Laser Measurement Solutions Module Feature:
1. Good for Laser Measurement Solutions Module
2. Support single measurement/continous measurement
3. Data output: RXTX, USB, RS232, RS485, Bluetooth optional
Specifications of Laser Measurement Solutions Module Feature:
| Brand Name | JRT |
| Product Name | Laser Measurement Solutions 100m Sensor |
| Model Number | B605B |
| Certification | FDA/ISO9001/CE/ROHS/FCC |
| Place of Origin | China |
| Accuracy | ±1 mm (0.04 inch) |
| Measuring Unit | meter/inch/feet |
| Measuring Range (without Reflection) | 0.03-100m |
| Measuring Time | 0.125~4 seconds |
| Laser Class | Class II |
| Laser Type | 635nm, <1mW |
| Size | 72*40*18mm (±1 mm) |
| Weight | About 25g |
| Voltage | DC2.0~3.3V |
| Electrical Level | TTL/CMOS |
| Frequency | 3HZ~8Hz |
| Operating Temperature | 0-40 ℃ (32-104 ℉ ) |
| Storage Temperature | -25~60 ℃ (-13~140 ℉) |
| Packaging | Neutro-packing |
1. Under bad measure condition, like environment with strong light
or the diffuse reflectance of measuring point over-high or low, the
accuracy would have bigger amount of error: ±1 mm+40PPM.
2. Frequency would be affected by environment.
3.120m,150m can be customized.
4. Voltage can be changed by power converter LDO
5. Under strong light or bad diffuse reflectance of target, please
use a reflector.
6. Operating temperature -10 ℃~50 ℃ can be customized.
